OEM Condenser Evaporator for Cold Storage Floor Stand FNV series Manufacturer, Factory

The condenser for cold storage is the most important component in refrigeration systems, designed to maintain optimal temperatures for perishable goods. The condenser are responsible for the function of a heat exchange to cool down and condense the incoming refrigerant vapor into liquid and a fan for blowing outside air through the heat exchanger to cool down the inside refrigerant.

Send Inquiry

Product Description

Products Description

The HT-FNV series Condenser is the optimized combination of high quality, efficiency, and easy installation. These condensers are self-contained and can combine the evaporator and compressor unit into a single compact unit. These units are suitable for various size cold storages and temperature requirements. It is a reliable choice for various storage requirements, including fresh/frozen food, pharmaceuticals, chemicals, logistics, etc. The condenser contributes to maintaining the freshness and good quality of goods while lowering operational costs.

Product Details

The HT-FU and HT-FVB series Condenser matches requirements from high, mid, to low temperatures, especially for larger horsepower compressor units. With an open design, it is easy to maintain and features lower operational costs. The FNV series condenser can work with various compressor choices from both international and domestic Chinese brands. Our condensing units are available in both Air Cooled and Water Cooled versions.

Key Features

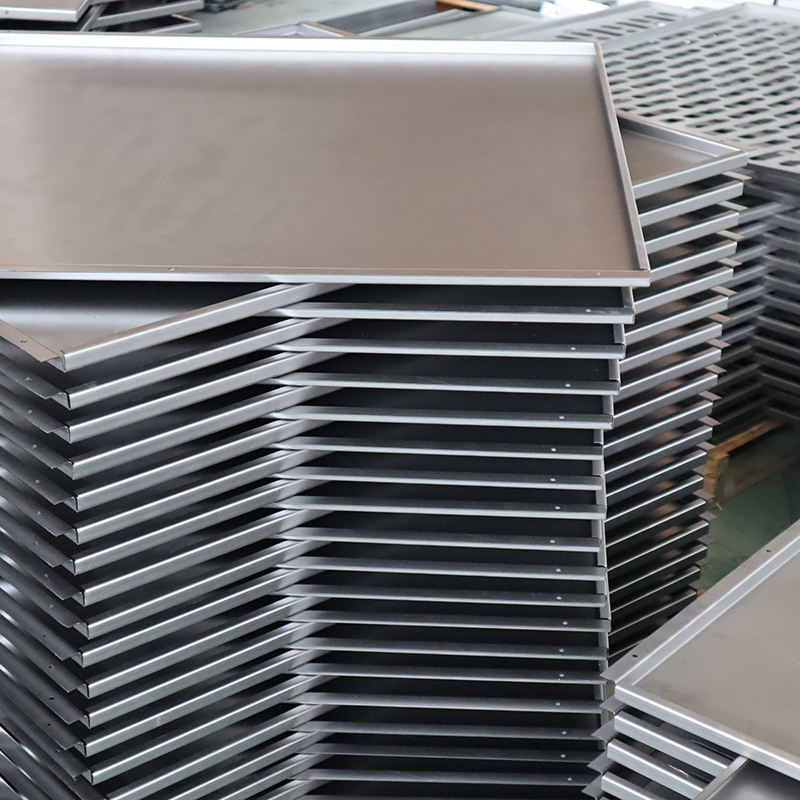

Steel Plate Cabinet

Plastic spray coating, customizable color, and corrosion-proof.

Copper Tubes

Mechanically expanded copper tubes for superior heat transfer.

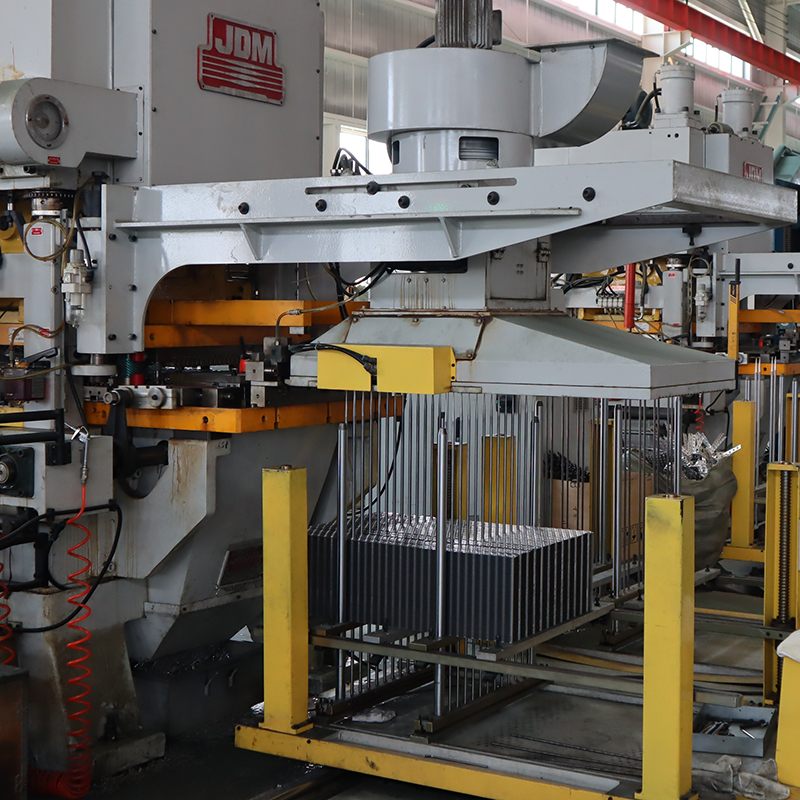

Aluminum Fins

High-quality aluminum fins; Hydrophilic and other specialized fins available.

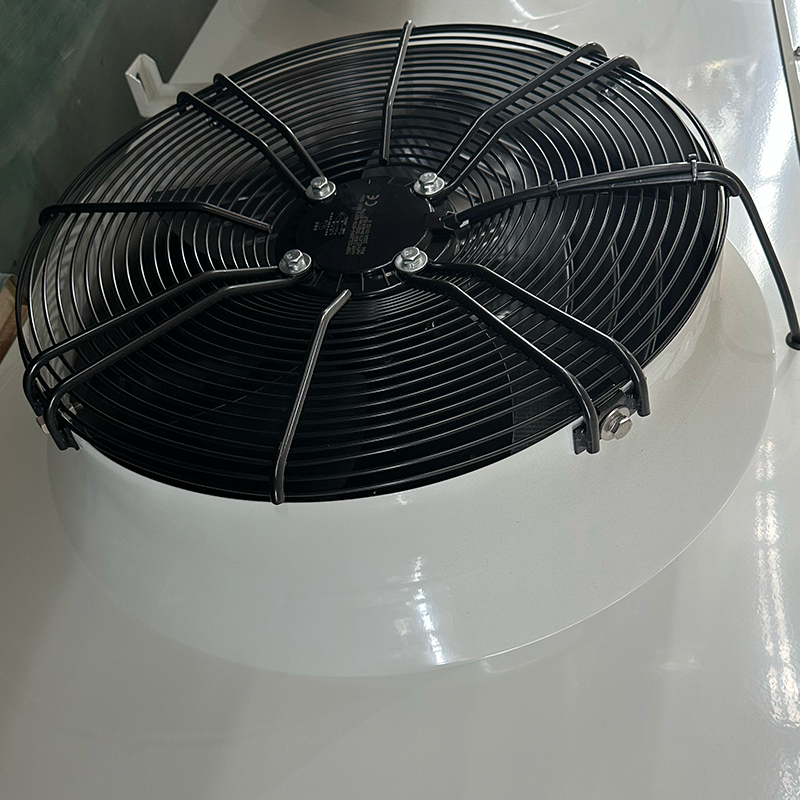

Fan Motor

Equipped with MaEr / EBM Fan Motors, providing large air volume with low noise.

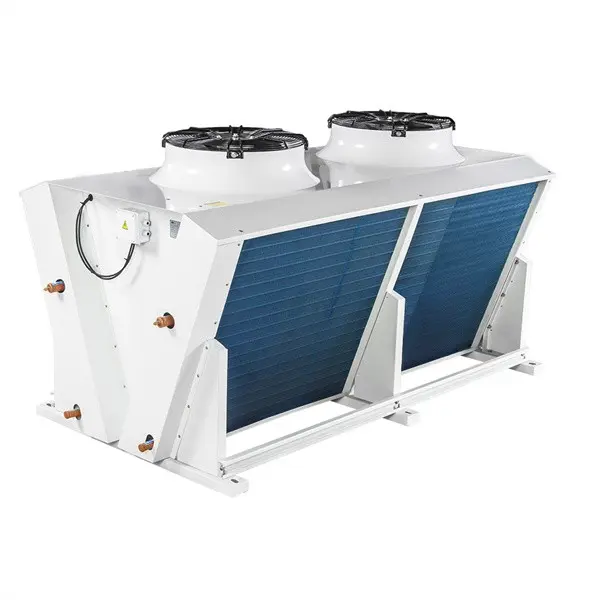

HT-FNV Condenser Design

Top: V Shape condensing fins + Fans on top

Condensing Unit Specifications

Standard: ● | Optional: ○

Model	Evap. Area (m²)	Cap. (KW)	Fan Motor				Foil Type		Compressor
Model	Evap. Area (m²)	Cap. (KW)	Brand	Qty	Dia(mm)	Air Vol(m³/h)	Light	Hydro.	Range (HP)
HT-FVB-60	60	21.9	MaEr/EBM	1	550	7500	●	○	6-8
HT-FVB-70	70	25.1	MaEr/EBM	1	550	7500	●	○	6-8
HT-FVB-80	80	28.7	MaEr/EBM	1	600	9500	●	○	8-10
HT-FVB-100	100	36	MaEr/EBM	2	550	2*7500	●	○	8-10
HT-FVB-150	150	52.3	MaEr/EBM	2	550	2*7500	●	○	10-20
HT-FVB-200	200	70.6	MaEr/EBM	2	600	2*9500	●	○	10-20
HT-FVB-300	300	108.2	MaEr/EBM	3	630	3*10800	●	○	30-50
HT-FVB-600	600	163.7	MaEr/EBM	4	710	4*15500	●	○	30-50

Compressor Choices

Our units are compatible with world-leading compressor brands, ensuring performance and reliability.

Copeland Scroll (3HP – 30HP)

RefComp (Italy) Semi-Hermetic Piston / CO₂ (5HP – 60HP)

Bitzer Semi-Hermetic Piston & Screw (3HP – 60HP)

DMZL (CN) Semi-Hermetic Piston & Screw (3HP – 60HP)

XueYing (CN) Vortex & Reciprocating (3HP – 60HP)

Danfoss Scroll & Reciprocating (3HP – 40HP)

Frequently Asked Questions

What applications are HT-FNV series condensers suitable for?

They are ideal for various cold storage sizes and temperature needs, including fresh or frozen food, pharmaceuticals, chemical storage, and logistics centers.

Can the color of the condenser cabinet be customized?

Yes, the steel plate cabinets feature a plastic spray coating that can be customized to your preferred color while remaining corrosion-proof.

Which fan motor brands do you use?

We use high-quality international brands like MaEr and EBM to ensure large air volume output with minimal noise levels.

Are both air-cooled and water-cooled units available?

Yes, our condensing units are designed to accommodate both air-cooled and water-cooled requirements depending on your facility's infrastructure.

What compressor brands can be integrated with these units?

Our units support a wide range of brands including Copeland, Bitzer, RefComp, Danfoss, and domestic Chinese brands like DMZL and XueYing.

How does the "V Shape" design benefit the system?

The V-shaped design optimizes the surface area for condensing fins and improves airflow efficiency from the top-mounted fans, leading to better heat dissipation.
