📦 Products Description
PUR sandwich panels consist of a core made of polyurethane foam, sandwiched between two outer layers, usually made from sheet metal such as galvanized steel or aluminum. Panel thickness can vary, typically 50mm to 200mm, depending on specific insulation requirements. The polyurethane sandwich panels are engineered to provide good insulation, structural integrity, and versatility, making them ideal for a variety of refrigeration applications.
🔍 Product Details
The PUR sandwich panel are an excellent choice for cold storage insulation, such as food or drug storage, cold chain logistics and industrial refrigeration. It features in energy efficiency, versatility, easy installation as well as beautiful appearance.
Our PUR Sandwich panel has the thickness choice from 50mm to 200mm, and can be customized in length and surface steel finish to meet specific project requirements.
| TECHNICAL PARAMETERS OF POLYURETHANE CORE SANDWICH PANEL |
| THICKNESS |
Effective Width |
Length |
Density |
Fire Resistance |
Weight |
Heat Transfer Coefficient Ud,s |
Surface Thickness |
Surface Material |
| mm |
mm |
m |
Kg/m³ |
/ |
Kg/㎡ |
W/[m x K] |
mm |
/ |
| 50 |
1120 |
1–18 |
40±2 Customizable |
B2 |
10.1 |
≤0.024 |
0.3 – 0.8 |
Customized |
| 75 | 11.1 |
| 100 | 11.8 |
| 120 | 12.7 |
| 125 | 13.2 |
| 150 | 13.9 |
| 200 | 16.1 |

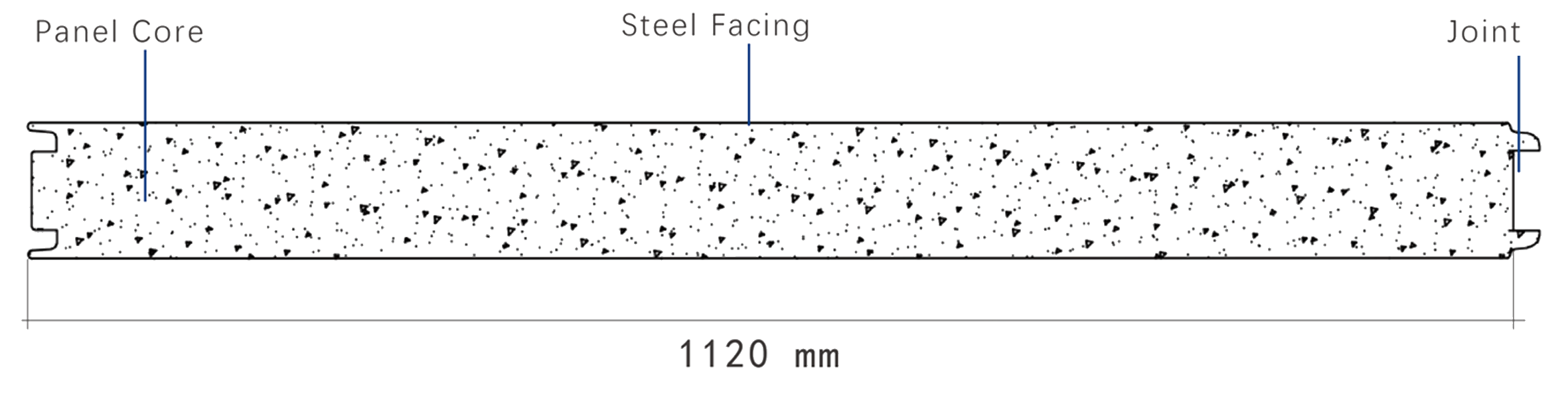

🔗 The Joint
The Split Joint PUR sandwich panels are widely used in industrial, commercial, and agricultural buildings, including warehouses, cold storage facilities and manufacturing plants. Their ease of installation and low maintenance requirements make them a cost-effective option for modern construction projects, helping to increase sustainability and efficiency.

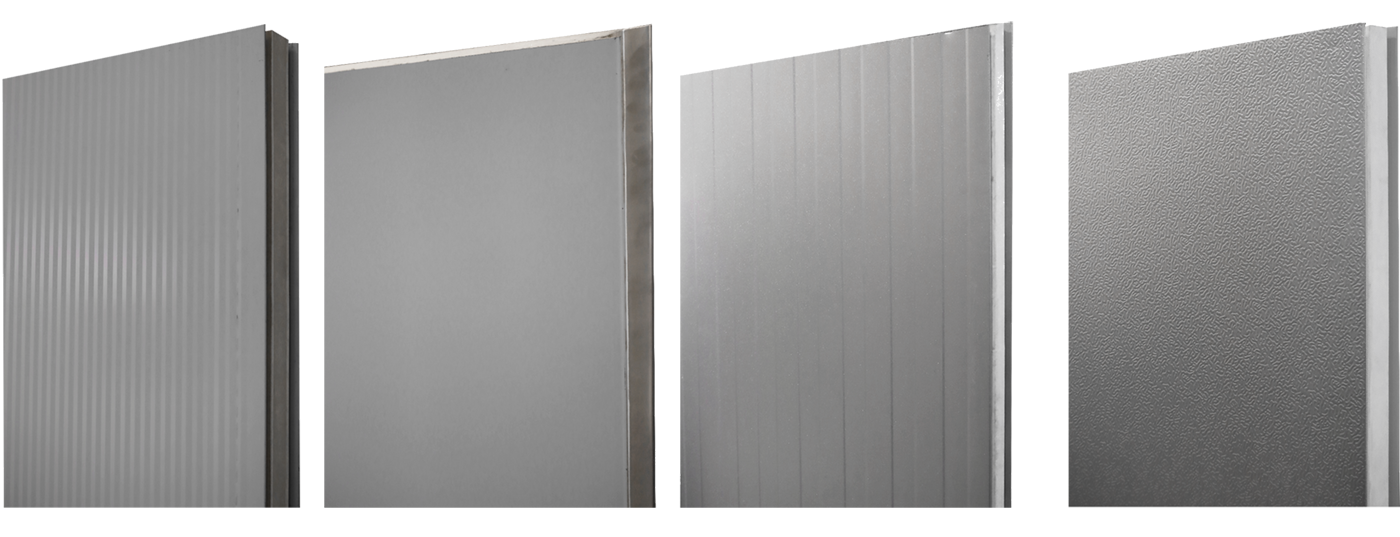

📏 Surface Profile
• Miro
• Smooth
• Linear
• Embossed
🎨 Surface Material
Our PIR sandwich panel have multiple customizable surface steel material and color choices such as PPGI, Stainless steel, embossed aluminum etc. Their durability, moisture resistance and chemical resistance further enhance their appeal.
PPGI (Preprinted Galvanized Iron)
PPGI features a galvanized steel base that is coated with a layer of paint for excellent corrosion resistance and durability. Key features include its lightweight nature and its availability in a variety of colors and finishes for aesthetic customization.
Typical Color (PPGI)
More Colors
PPGI has a variety of color finishes, we provide customized color service for whatever color you need.
Other Surface Material
To obtain better or specific function, other surface materials can also be customized — such as Stainless Steel (SUS304 / SUS201), Aluminum, or other alloy (Zinc, Magnesium, Titanium, etc.).
Ti-Mg-Zn-Al Alloy
Embossed Aluminum
Stainless Steel (SUS304)
Extra Coating
PPGI can also be enhanced with various advanced coatings to improve its performance and durability. Typical coatings include:
-
🛡️
1. PVDF (Polyvinylidene Fluoride): Exceptional resistance to UV radiation and weathering, retaining color vibrancy over time.
-
🔨
2. HDP (High-Durability Polyester): Superior durability and scratch resistance, suitable for industrial environments.
-
🧪
3. EP (Epoxy Polyester): Excellent adhesion and resistance to chemicals and moisture, ideal for indoor chemical exposure.
PIR sandwich panels combine excellent thermal insulation, cost-effectiveness, safety, and versatility. Their core competitive advantage is the ability to deliver long-term energy savings while ensuring structural integrity and safety.
💡 More About PUR Sandwich Panel
-
⚡
Energy Efficiency: High thermal insulation value can significantly reduce the energy consumption of refrigeration systems.
-
🛠️
Versatility: Customizable in thickness, size and surface finish, allowing use on walls, ceilings, and floors.
-
🏗️
Easy to Install: Lightweight nature and modular design allows for quick and efficient installation, minimizing downtime.
-
🎨
Aesthetics: Multiple colors and textures provide an aesthetic appearance for cold storage facilities.
Frequently Asked Questions
What is a PUR sandwich panel and what is it made of?
A PUR sandwich panel consists of a polyurethane foam core sandwiched between two outer metal layers, typically galvanized steel or aluminum. It provides excellent insulation and durability for refrigeration applications.
What thickness options are available for PUR sandwich panels?
PUR sandwich panels are available in thicknesses ranging from 50mm to 200mm, including 75mm, 100mm, 120mm, 125mm, and 150mm. Custom lengths up to 18m can also be arranged.
What surface materials and finishes can be customized?
The panels support PPGI (Preprinted Galvanized Iron), Stainless Steel (SUS304/SUS201), Embossed Aluminum, and special alloys. Profiles include Miro, Smooth, Linear, and Embossed, with coatings like PVDF, HDP, and EP.
What are the main applications of PUR sandwich panels?
They are widely used in cold storage (food and pharmaceutical), cold chain logistics, industrial refrigeration, warehouses, and agricultural structures.
How do PUR sandwich panels contribute to energy efficiency?
With a Heat Transfer Coefficient ≤ 0.024 W/[m·K], these panels significantly reduce the energy consumption of refrigeration systems, leading to lower operating costs and a reduced carbon footprint.
Can PUR sandwich panels be customized for specific project needs?
Yes. Panels can be fully customized in terms of thickness (50mm–200mm), length (1–18m), surface material, color, profile finish, and core density to meet specific technical requirements.
