Polyurethane cam lock sandwich panels consist of a core made of polyurethane foam, sandwiched between two outer layers, which are typically made from sheet metal such as galvanized steel or aluminum. Panels are available in a variety of thicknesses, typically 100mm to 200mm, depending on specific insulation requirements.
| TECHNICAL PARAMETERS OF POLYURETHANE CORE SANDWICH PANEL |
| THICKNESS (mm) |
Effective Width (mm) |
Length (m) |
Density (Kg/m³) |
Fire Resistance |
Weight (Kg/㎡) |
Heat Transfer Coefficient Ud,s (W/[m x K]) |
Surface Thickness (mm) |
Surface Material |
| 100 |
920 / 960 / 1000 |
10m Max |
40±2 Customizable |
B2 Grade |
11.8 |
≤0.024 |
0.3-0.8 Customized |
Customized |
| 120 |
12.7 |
| 150 |
13.9 |
| 200 |
16.1 |

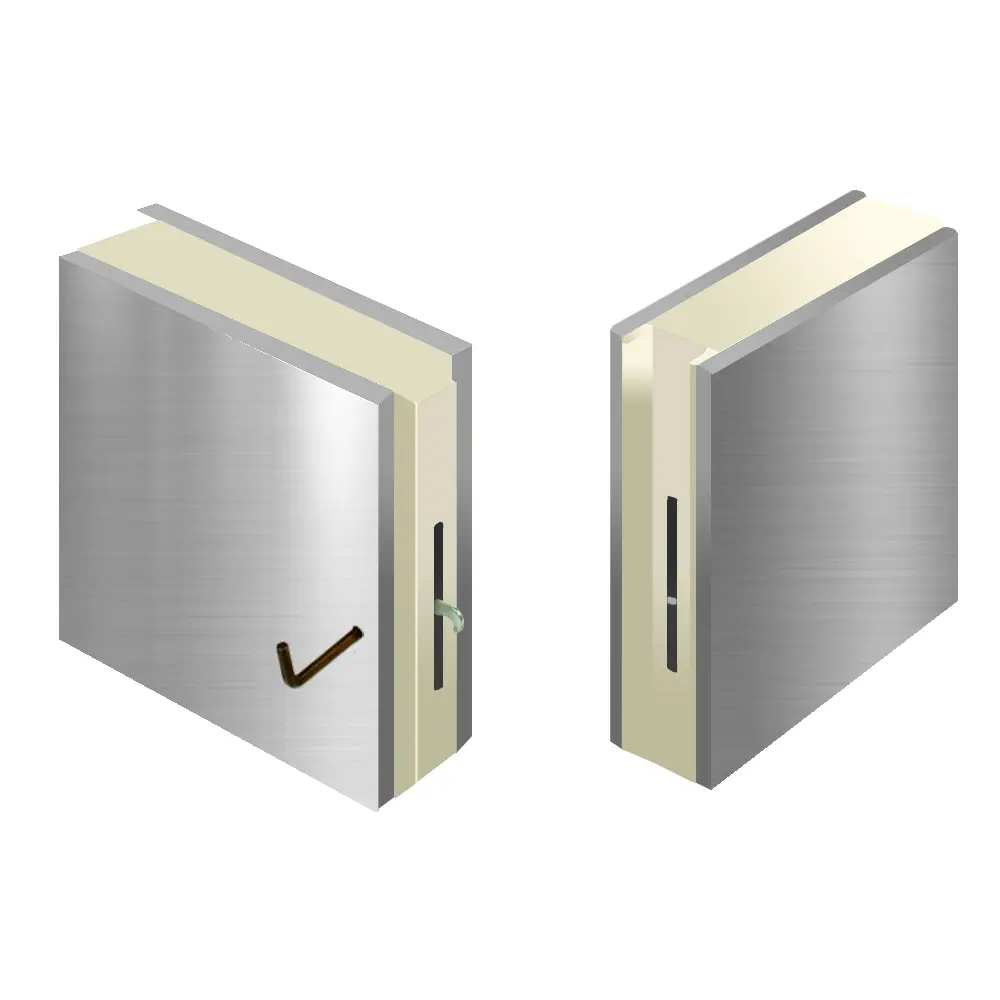

The cam-lock design with split joint of the cam-lock sandwich panels are widely used in industrial, commercial, and agricultural buildings, including warehouses, cold storage facilities and manufacturing plants. Their ease of installation and low maintenance requirements make them a cost-effective option for modern construction projects, helping to increase sustainability and efficiency.
Miro
Smooth
Linear
Embossed
Our PUR Cam Lock Sandwich Panel have multiple customizable surface steel material and color choices such as PPGI, Stainless steel, embossed aluminum etc. Their durability, moisture resistance and chemical resistance further enhance their appeal.
PPGI (Preprinted Galvanized Iron)
PPGI features a galvanized steel base that is coated with a layer of paint for excellent corrosion resistance and durability. Key features include its lightweight nature and its availability in a variety of colors and finishes for aesthetic customization. PPGI is also very environmentally friendly as its production process produces less waste. It has a long service life and minimal maintenance requirements.
Typical Color (PPGI)
More Color Options
Other Surface Material
To obtain better or specific function, other surface materials can also be customized such as Stainless Steel, Aluminum, or other alloy.
Ti-Mg-Zn-Al Alloy
Embossed Aluminum
Stainless Steel (SUS304)
Extra Coating Options
1. PVDF (Polyvinylidene Fluoride)
Exceptional resistance to UV radiation, chemicals, and weathering. Ideal for outdoor applications.
2. HDP (High-Durability Polyester)
Superior durability and scratch resistance. Suitable for high-traffic and industrial environments.
3. EP (Epoxy Polyester)
Excellent adhesion and resistance to chemicals and moisture. Ideal for indoor applications.
❄️
More About PIR/PUR Cam Lock Sandwich Panel
The core material, polyurethane, is a thermoset polymer that expands during manufacturing to form a dense, closed-cell structure. This structure traps air, providing excellent insulation by minimizing heat transfer.
-
🌡️
High Thermal Insulation Value: Thermal conductivity coefficient (λ) of approximately 0.023–0.025 W/m·K.
-
🔐

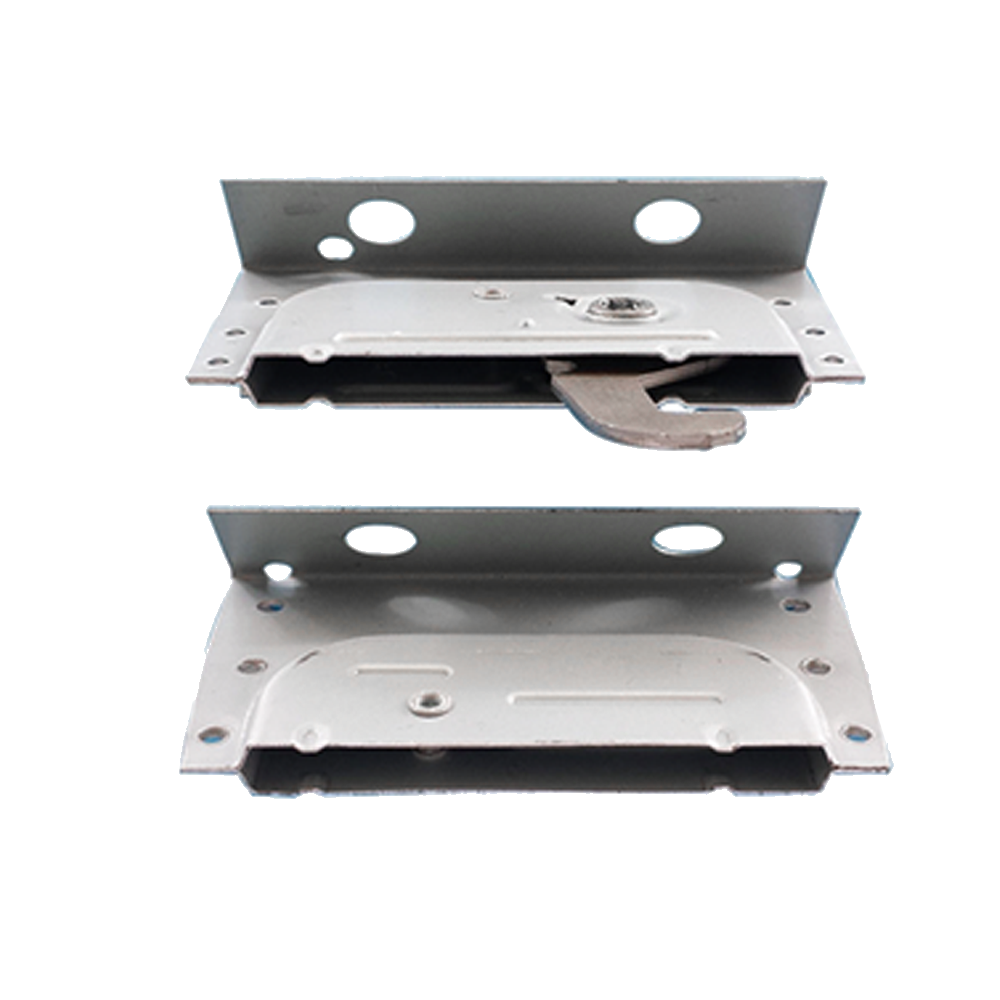

Cam Lock Design: Enables fast and secure panel connection, ensuring a tight seal and minimizing air leakage.
-
⚖️
Lightweight: Easy to handle and install, reducing overall structural load on the building.
-
💧
Moisture-Proof: Closed-cell structure resists moisture absorption and prevents mold growth.
Frequently Asked Questions
❓ What thicknesses are available for PUR cam lock sandwich panels?
PUR cam lock sandwich panels are available in thicknesses of 100mm, 120mm, 150mm, and 200mm. Custom thicknesses can also be arranged based on project requirements.
❓ What is the heat transfer coefficient of these sandwich panels?
The heat transfer coefficient (Ud,s) of polyurethane core sandwich panels is ≤0.024 W/[m·K], making them highly efficient insulators for temperature-controlled environments.
❓ What surface materials can I choose?
Available materials include PPGI (Pre-painted Galvanized Iron), Stainless Steel (SUS304/SUS201), Embossed Aluminum, and various alloys (Zinc, Magnesium, Titanium). Surface thickness ranges from 0.3mm to 0.8mm.
❓ What are the benefits of the cam lock mechanism?
The cam lock mechanism creates a tight, secure seal between panels that minimizes air leakage and heat transfer, ensuring consistent low temperatures in cold storage facilities.
❓ What are the standard dimensions of the panels?
Panels come in effective widths of 920mm, 960mm, and 1000mm, with a maximum length of 10 meters.
❓ Are the panels resistant to moisture and mold?
Yes, the closed-cell structure of the polyurethane foam core makes it highly resistant to moisture absorption and prevents the growth of mold.
