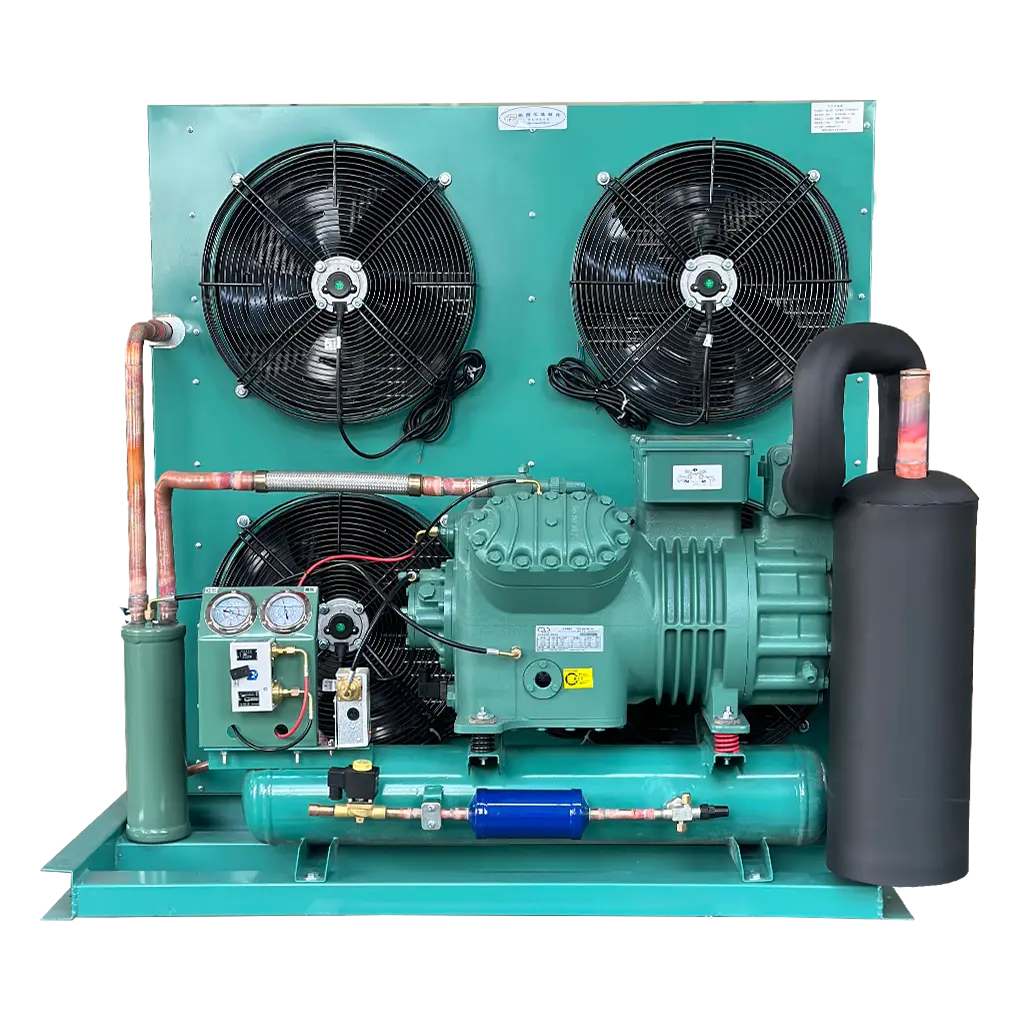

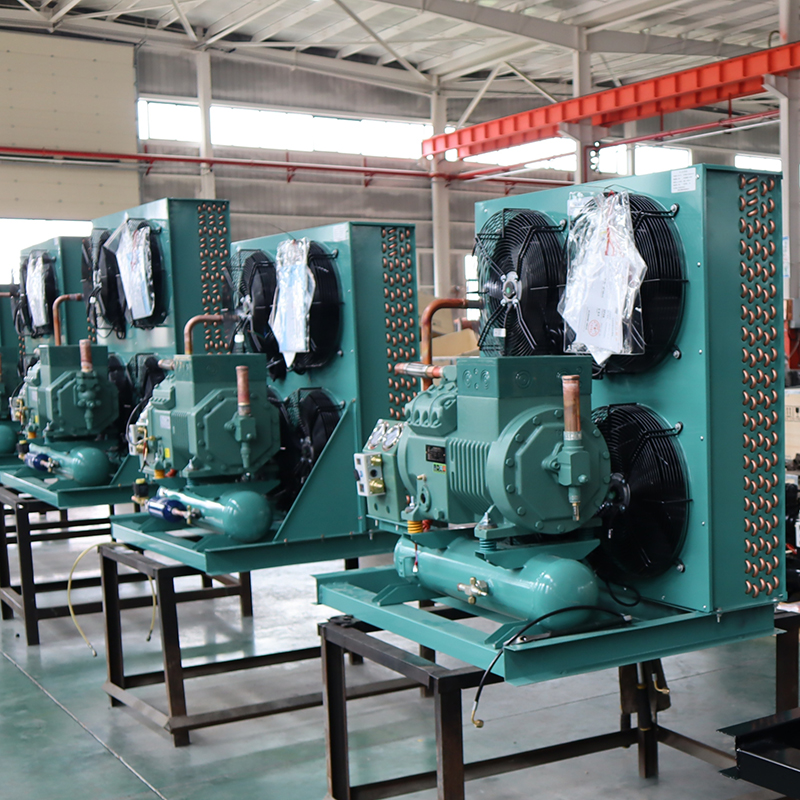

The HT-FNH series Condensing unit is highly regarded for their reliability, making it a top choice for cold storage needs. The FNH series condensing unit often installed outside of the facility, so it is designed to provide effortless operation and minimal maintenance, making it an ideal choice for commercial and industrial refrigeration. Also it can work with various types of compressor and refrigerant, the FNH series condensing unit becomes popular in refrigeration industry.

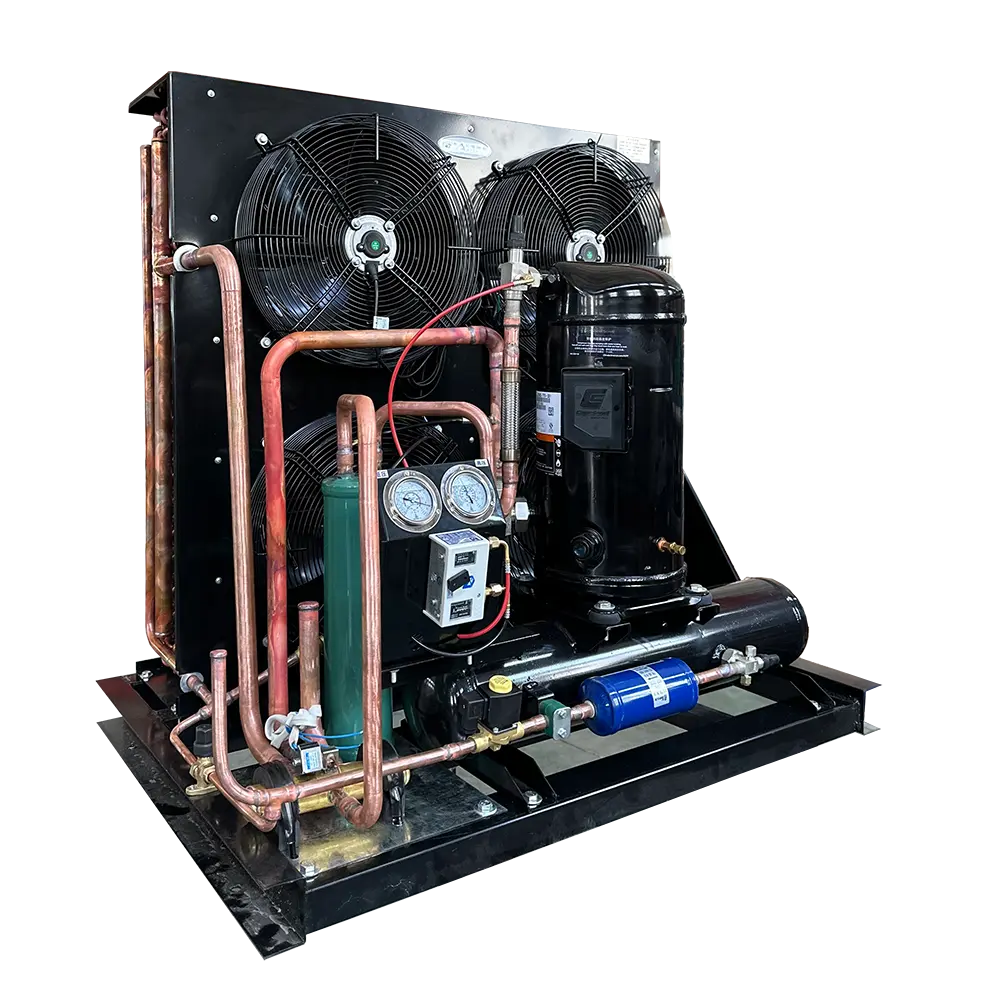

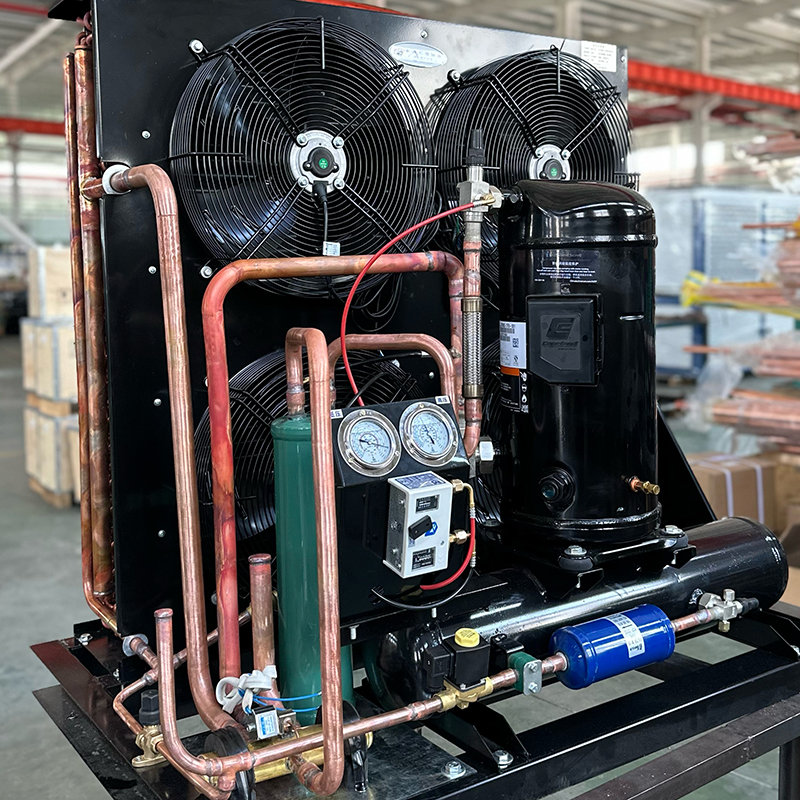

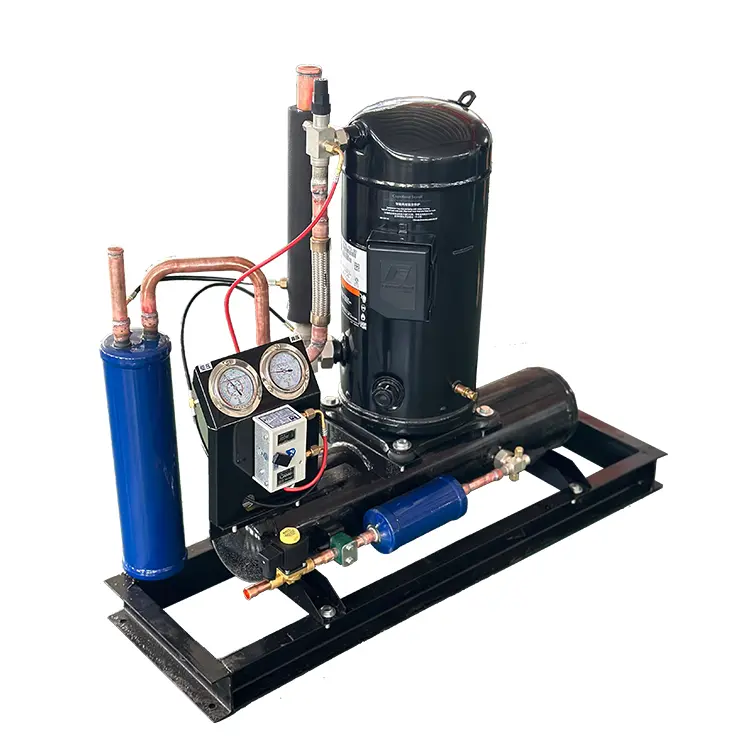

The HT-FNV series Condensing unit matches the requirement from high – mid – low temperature. With the open design, it is easy to maintenance and with lower operational cost. The FNH series condensing unit coming with various compressor choices of types and brands, pre-installed in factory, and the condensing unit come with both Air Cooled and Water Cooled.
Equipped with plastic spray coating, ensuring the unit is corrosion proof and durable.
The exterior color of the cabinet can be customized to meet specific aesthetic or branding requirements.

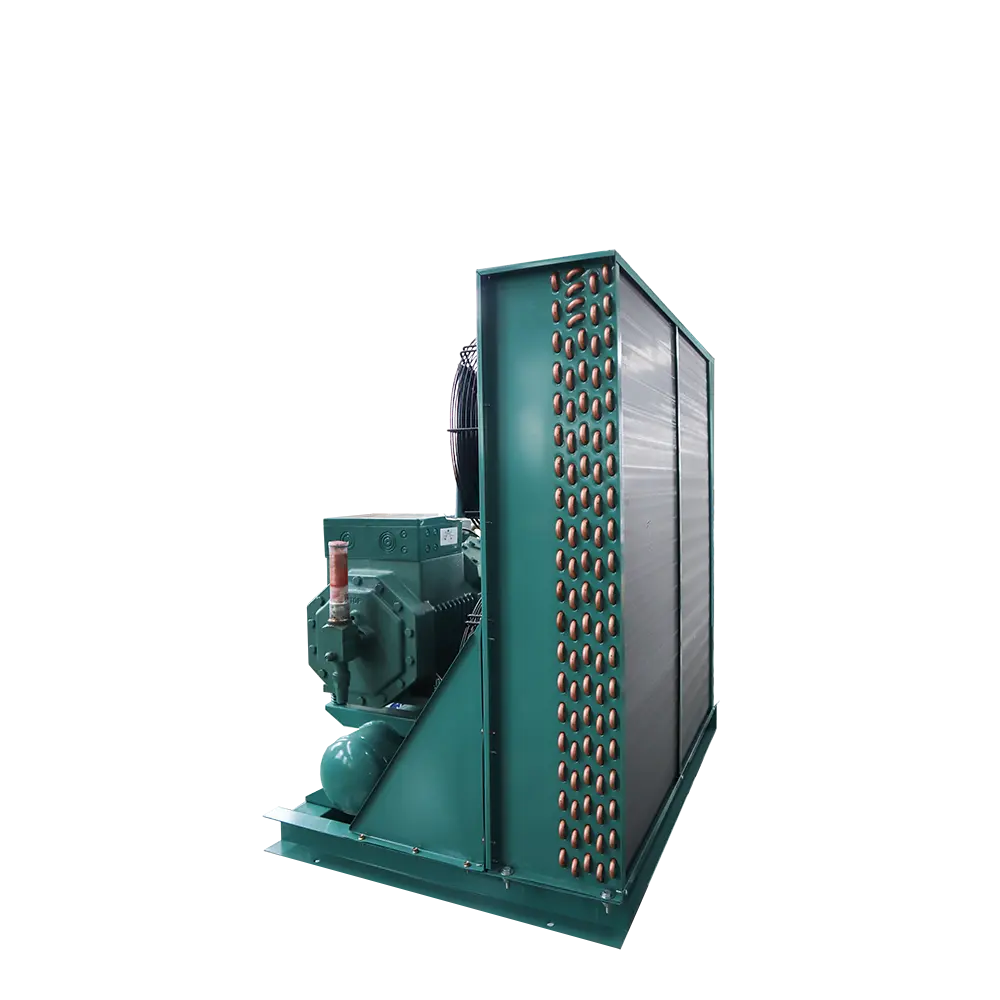

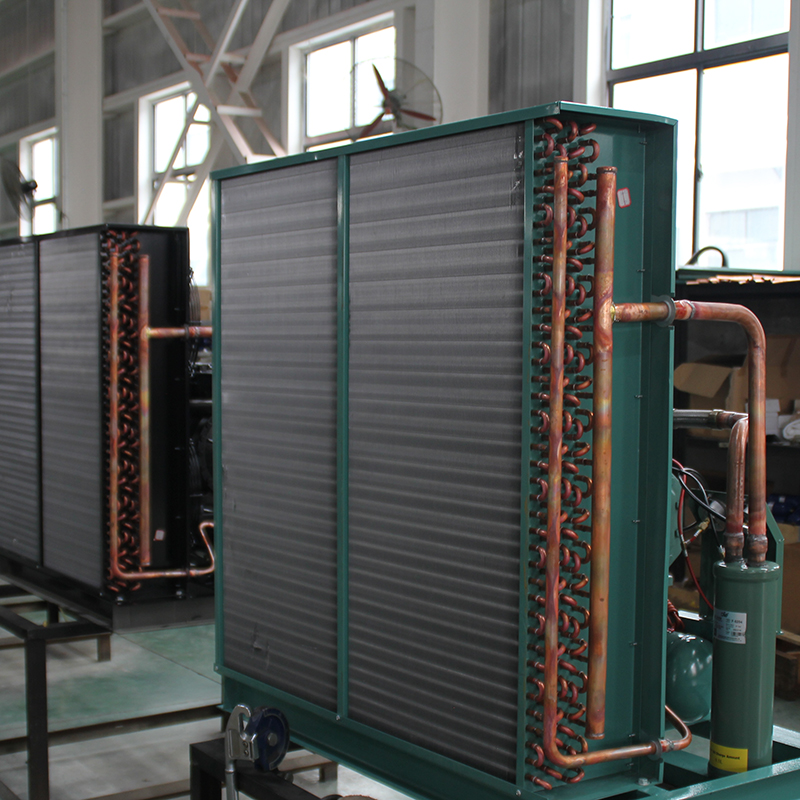

Mechanically expanded copper tubes ensure high efficiency in heat exchange.

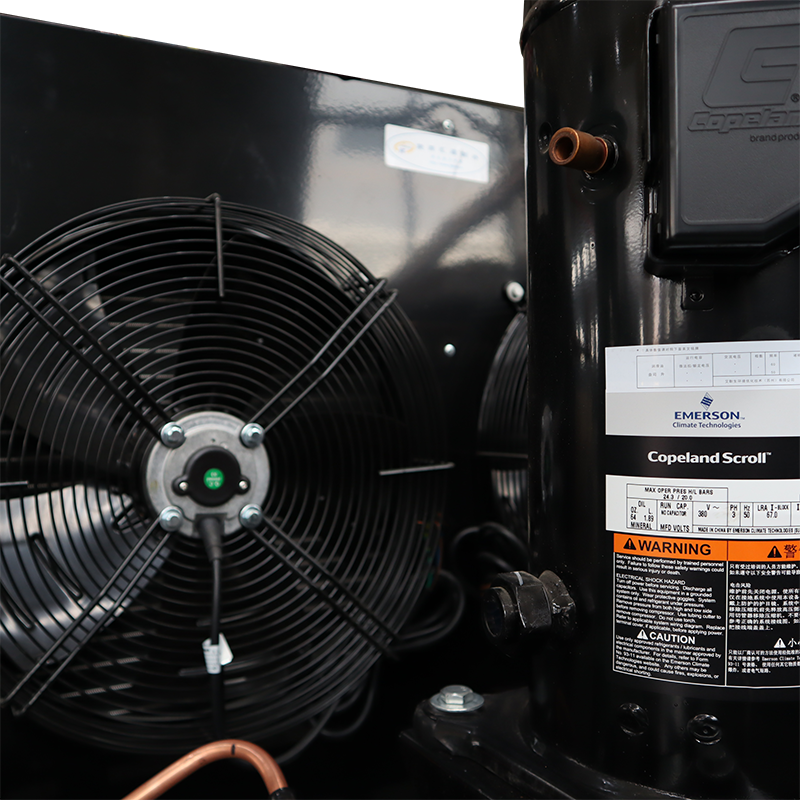

Equipped with MaEr / EBM Fan Motor, providing large air volume with low noise operation.
Supports multi refrigerant application: R404A, R134A, R507, R22, etc.

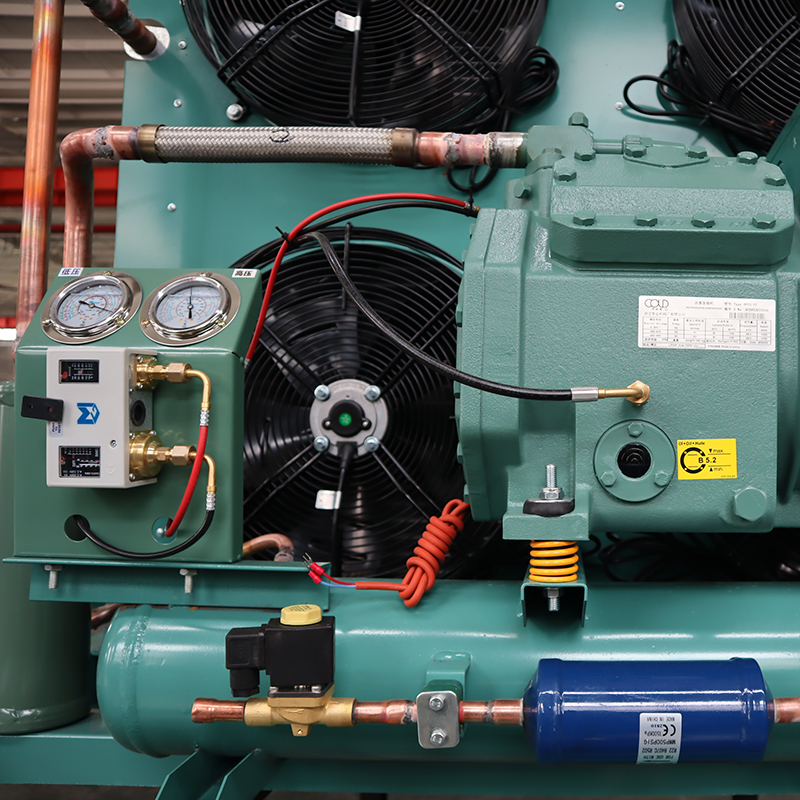

Includes protection for overloading, sub-heating, lack of phase, and high/low pressure.
Official Authorized OEM factory for world-renowned brands, offering high-performance compressor integration:
| Model (HT-FNV) | Condenser Details | Compressor | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Area (m²) | Capacity (KW) | Fan Motor Details | Foil Type | Ref. Range | |||||||
| Size | Output | Brand | Qty | Dia (mm) | Volume (m³/h) | Power (W) | Light | Hydro. | HP | ||
| 3 | 0.8 | ● | 1 | 200 | 530 | 40 | ● | ○ | 1~2 | ||
| 12 | 3.7 | ● | 1 | 300 | 1570 | 75 | ● | ○ | 1~2 | ||
| 28 | 8.3 | ● | 2 | 350 | 2*2670 | 2*135 | ● | ○ | 2~3 | ||
| 55 | 15.5 | ● | 2 | 400 | 2*3500 | 2*190 | ● | ○ | 5~6 | ||
| 100 | 29.4 | ● | 4 | 450 | 4*4500 | 4*230 | ● | ○ | 6~12 | ||
| 200 | 56.5 | ● | 4 | 500 | 4*6500 | 4*420 | ● | ○ | 15~20 | ||
